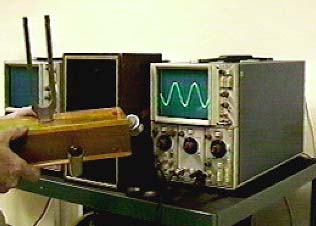

Sound through
 an Oscilloscope

This movie is part of the collection: Prelinger Archives
Producer: Coronet Instructional Films Sponsor: N/A
Audio/Visual: Sd, B&W Keywords: Perception: Sound

Creative Commons license: Public Domain

School blocks YouTube?

Download









B. Period (T) – time for an entire wave cycle to pass a given point in a medium



- determined by source of vibration not medium





T = Total Time/# of waves

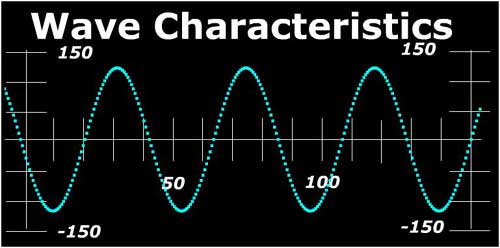

Ex) Use the controls to give this wave an amplitude of 5 and a period of 10



Ex) It takes 20 seconds for 5 waves to pass by a point. What is the period?









The period is 4 seconds







T

(sec) (Period)

 =

1

f



Ex) The frequency of a light

wave is 5.0 x 1014 hertz.

What is the period of the wave?



T = 1/f







 = 1/(5.0 x 1014 hertz)





a) 2.0 x 10-15 s

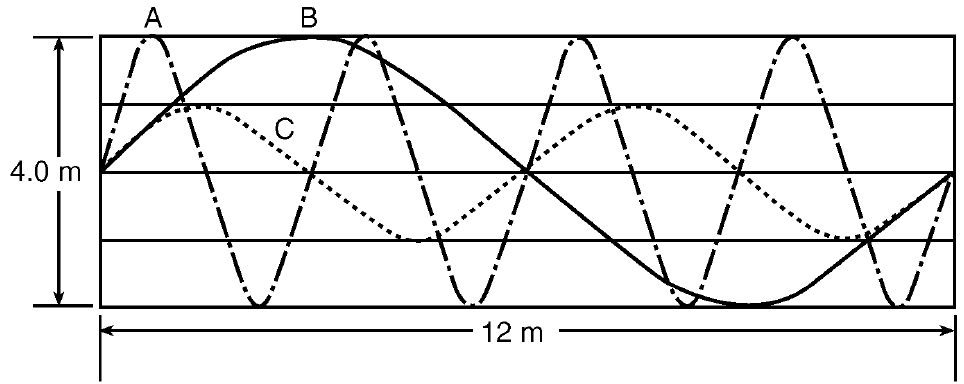

Which has the largest period?

Jan 2004













B
(will take the
longest  to pass by)









C. Amplitude – maximum change in position of a particle from its rest position during a single vibration





Amplitude

[ HTML5 ]
St. Mary's Physics Online



- determined by source of vibration, not medium

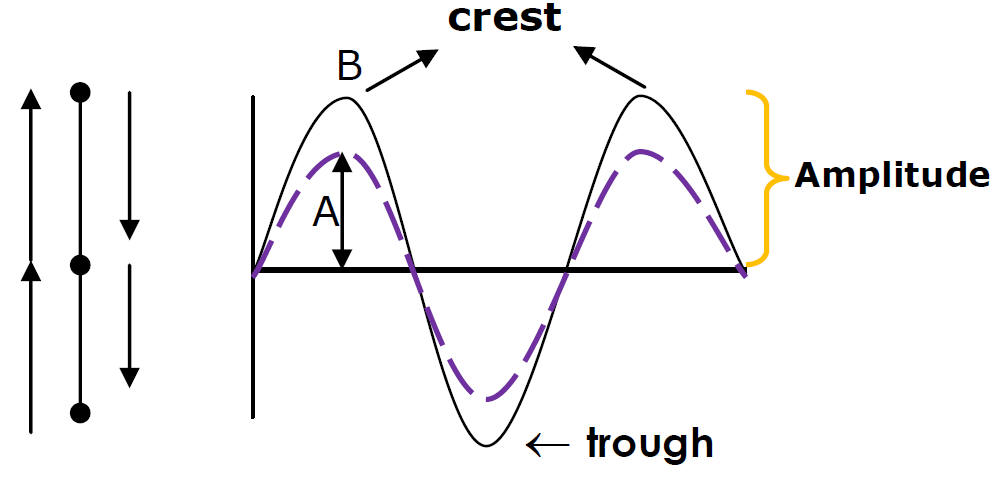

Ex) Compare waves A & B













Same Frequency, Period
Different Amplitude








1. Amplitude of a wave shows the amount of energy in the wave







a. Amplitude is a measure of loudness for sound and brightness for color -



Set your volume low before playing this video

Download this Program







Sound Waves/Oscilloscopes
HyperPhysics

| Onsite |







Amplitude?

Made using a spreadsheet created by Dan Hosey - Pittsford Sutherland HS

Download /

YouTube











3.0 meters



Longitudinal or Transverse?





Review

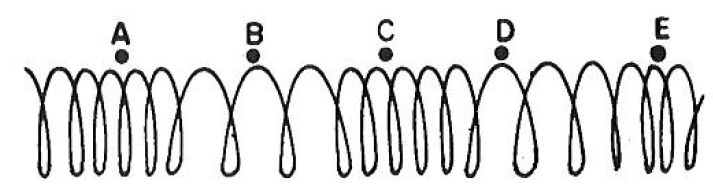

Which interval is closest to one wavelength?



Longitudinal or Transverse?







Launch







Enrichment



How the Ear Works

Producer: Bosse (Karl Kurt)
Sponsor: N/A  Audio/Visual: Sd, B&W
Keywords: Perception: Sound; Animation

Creative Commons license: Public Domain









How Sound Works

NASAconnect
