Dispersion PHET - showmethephysics.com
Assessment
![](smmetrose.gif)

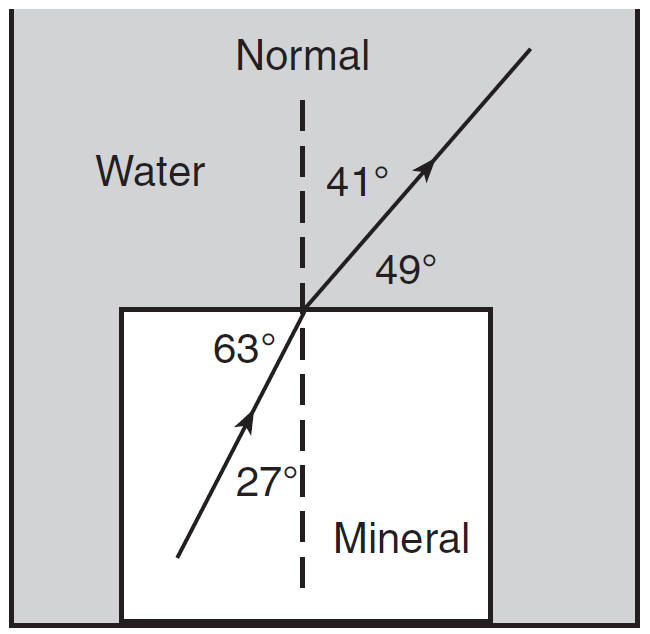

Review - Name the angle of incidence and the angle
of refraction
![](img1B.jpg)
About Light
| Onsite |

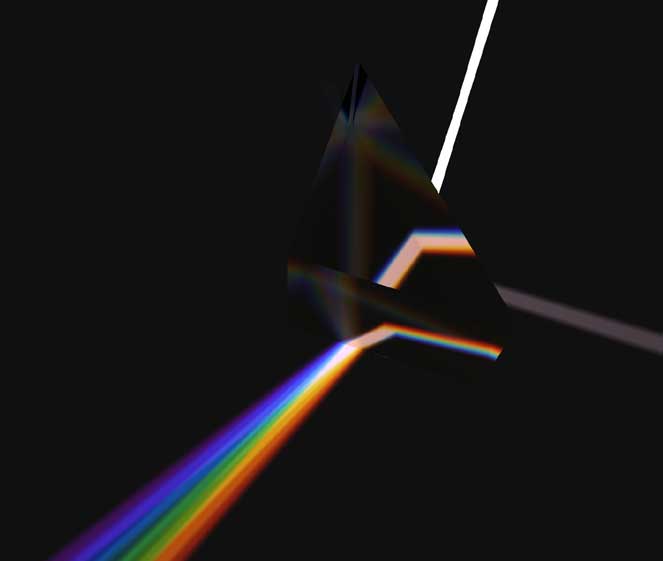

Newton proved that white light is a blend
of all the colors of the rainbow
![](prismSciTeacherWebsite.jpg)
![](smmetrose.gif)
White Light
Animation
(Right Click, Save As)
Penn State
![](nittanyLion.jpg)
![](smmetrose.gif)
2. Dispersion – separation of
polychromatic light into its
component wavelengths (colors)
![](2prism.gif)
Wikipedia - Public Domain
Trivia
What
famous album
cover
has a prism on the front? Their
big hit?

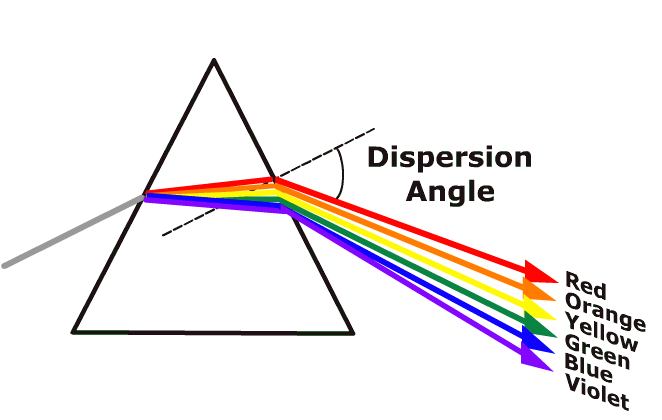

Each Color has
A Different Wavelength
![prism](prism.gif)
![](smmetrose.gif)
NASA
![](smmetrose.gif)

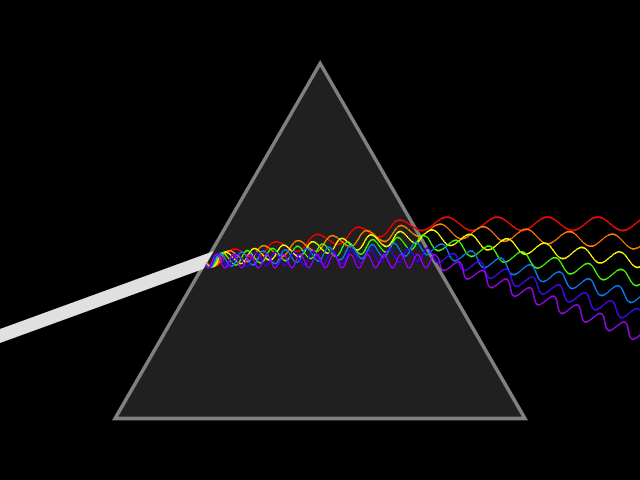

Red
- fastest
(slowed least),
bent least
Violet - slowest
(slowed most),
bent most
![](Light_dispersion_conceptual_waves.gif)
Lucas V. Barbosa
![](BC_Light.gif)
Dispersive Medium – medium in which the velocity of wave depends on
frequency
(makes rainbows)
![](32627323[1].gif)
ex) Glass, water
Nondispersive
- Air
![](img16.gif)
![](smmetrose.gif)
Refraction with
Polychromatic Light
(Angle, Index of refraction)
Molecular Expressions - FSU
![](smmetrose.gif)
![](rainbow750.jpg)
http://www.freeimages.co.uk/
Review
What is the name for this special kind of reflection?
![](TIR_in_PMMA.jpg)
Wikipedia
Total internal reflection in a bar of PMMA.
The laser is HeNe laser
Review

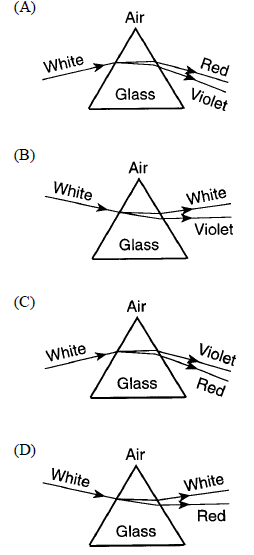

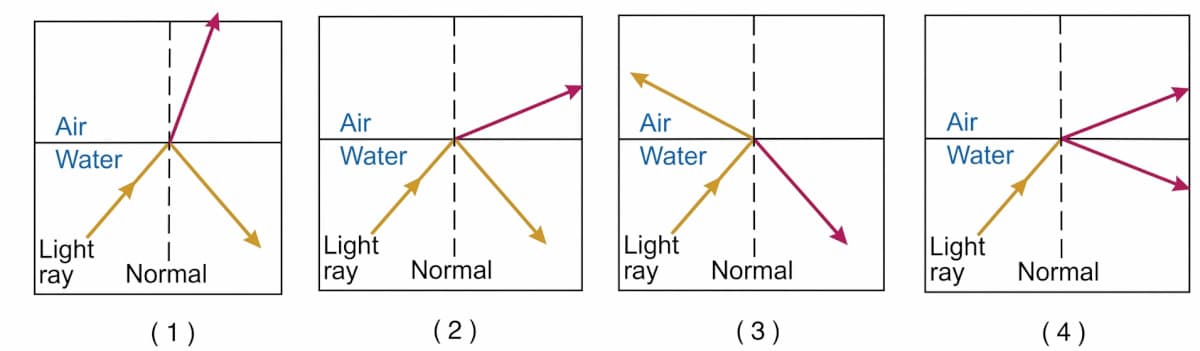

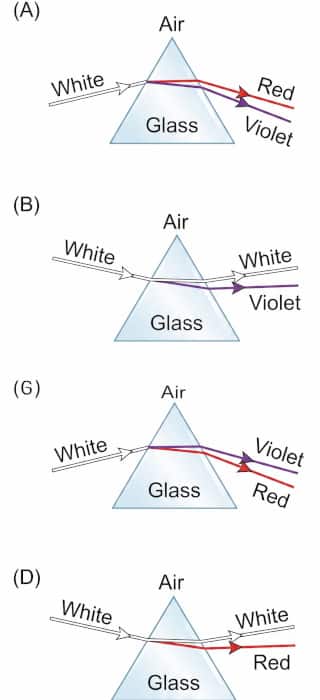

Cross out all the ray diagrams that are incorrect. Justify your answers.
![](img25.jpg)
June 2014
The Nasty Feud Between Isaac Newton and Robert Hooke
![](smmetrose.gif)
Total Internal Reflection
/Dispersion Assessment
![](smmetrose.gif)
![](smmetrose.gif)
![](../WebElements/cartoon_owl_sitting_on_a_book.jpg)
Enrichment Review Video
|
Onsite
|
Refraction/Dispersion Simulations
University of Utah
