E. Wave Nature of Light



2 Competing Theories:

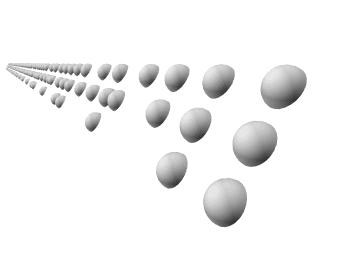

 1. particle

2. wave






Wikimedia - (c) 2002 B. Crowell, GFDL licensed









Behavior of Light Supporting Wave Theory



1. Diffraction � light spreads out into the region behind an obstacle

Laser Diffraction and Interference

MIT Tech TV







School Blocks YouTube? Use the file below.

TuningBeatsYT.mov

Show Me The Physics YouTube Channel











2. Interference Young's Double Slit - Early 1800's



Pattern created by a single light wave
 passing through 2 small slits!


(146 � 200 pixels, file size: 1 KB, MIME type: image/jpeg)

Prof Dr. Claus J�nsson



Which letters show constructive interference?

destructive interference?







 Constructive - A,  B, D, E
(Crest, Crest / Trough/Trough)



Destructive C, F

(Crest / Trough)




Move your mouse left and right over the simulation below

[ Flash ]







Show Me The Physics









λ/d = x/L - Flash

[ HTML5 ]

Show Me The Physics











λ/d = x/L





Monochromatic Coherent
Light Source was used

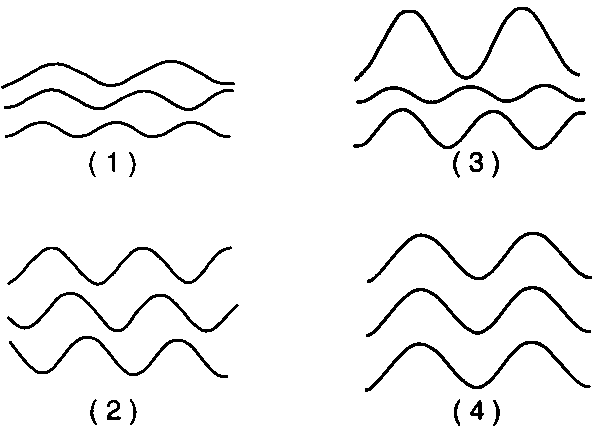

Which light source is coherent?

June 1997 Regents Test












Choice 4





Double Slit - Wavelength Difference-
Michael Fowler Flashlets







Name that interference / Wavelength shift?






Constructive

Whole Wavelength Shift

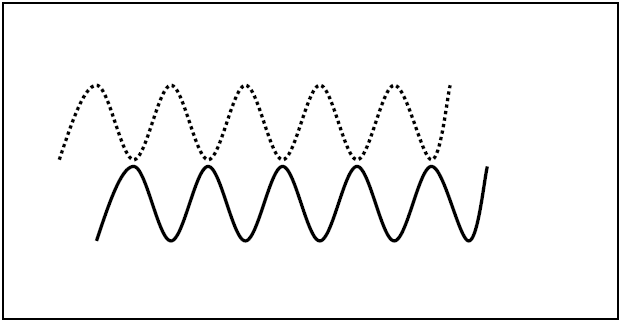

Name that interference / Wavelength shift?








Destructive

1/2 λ difference





| Flash |

Show Me The Physics Website

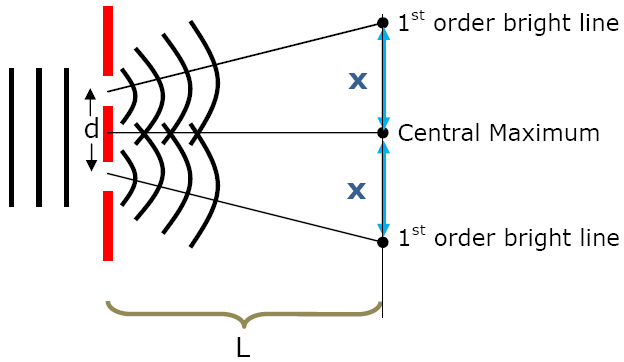

If you draw a line from each slit to the 1st order bright line, you will notice that one line is longer than the other.





The difference between these two lines is 1λ.






Destructive Interference

1/2, 1 1/2, 2 1/2 ...
Wavelength difference








Constructive Interference

causes ...




 Bright Lines




Destructive Interference


causes...







Dark Lines





AP B Physics

Finding 2nd, 3rd, 4th
 .... order bright lines



sinq = ml/d

q = angle between slits and line

d = distance between slits

m = 0, 1, 2, .... order bright lines

m = 1/2, 1 1/2, 2 1/2 dark lines

q =  angle to bright line

x/L = ml/d

x = distance from central maxima






Polarization

AP Physics

Ex) Calculate the distance between two slits in a Double Slit Experiment if the wavelength of the light used is is 5 x 10-7 m and the distance between the central maximum and the first order bright line is 2 x 10-2 m. The distance from the slits to the screen is 4 meters.



λ/d = x/L


(5 x 10-7 m)/d = (2 x 10-2 m)/4 m


Answer d = 1 x 10-4 m


Question: If they give you d, L and x and asked you to find the COLOR of the light used, What would you do? Where would you go to find the color?



Answer:

1. Solve for λ use Young's Equation

2. Use 3 x 108 m/s = fλ to find the colors frequency

3. Look up the color on page 2 Ref.
