Fill in the Blank Notes



Electromagnetic Radiation - waves of energy generated by the acceleration of charges





Why can't neutrons make this kind of wave?





Have no charge



- travel at the speed of light in a vacuum





3 x 108 m/s


 Electromagnetic Wave
Santa Barbara City College

NASA

Electromagnetic Waves





Charges "shake" off their energy



 in waves when they vibrate

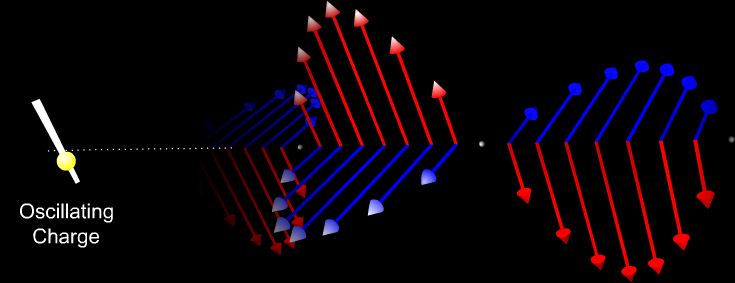

Vibrating Charges &
Electromagnetic Waves
Physics 2000

3d Electromagnetic Wave
 - David M. Harrison

3d Electromagnetic Wave # 2
 - David M. Harrison

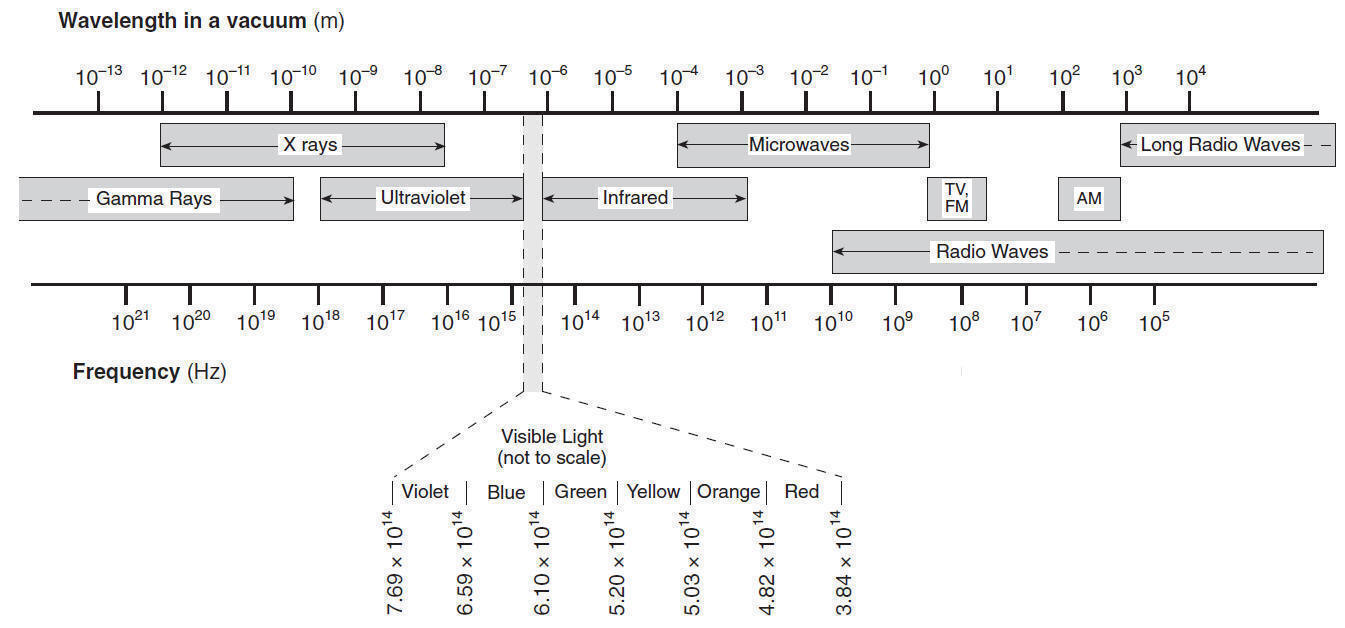

Electromagnetic Radiation

 - Wavelength and Frequency
Spectrum © W. Bauer



Conversion of a DICOM-format X-ray from a ten year old male showing polydactyly. This is the patient's left hand, posterior-anterior projection. Identifying tags and such have been stripped. en:User:Drgnu23, subsequently altered by Grendelkhan, Raul654, and Solipsist.





In the late 40's & early
50's, an x-ray unit was
a common shoe store
sales promotion device.
They were finally
banned in the US in 1970.



Source - Museum of quackery

Wikipedia

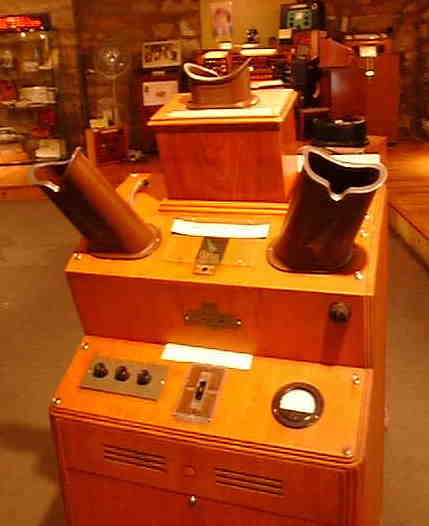

Meet the Pedoscope



Source - Museum of Quackery - Bob McCoy



Which wave has the
smallest wavelength?

(hint: most penetrating)









Gamma Rays,

X-Rays









Which wave has the
smallest frequency?









Radio Waves

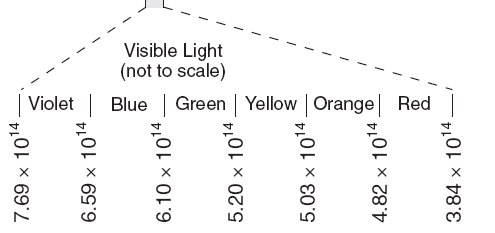

Which Color Has the
Greatest Wavelength?







Red







Smallest Wavelength?







Violet



Which color of light has a
frequency of 6.0 x 1014  Hz?



Green







What is the frequency

of light whose wavelength

is 6 x 10-7 m?



v = fl



3x108 m/s = f[6 x 10-7 m]



f = 5  x 1014 Hz

What color?



Orange





Try this at home

Seeing invisible waves with your cellphone
