Making a Magnet
with Electricity

Electric Magnets are created using
thousands of wire loops



[ Flash ]





We can understand an electric magnet
 by understanding the magnetism
of a single loop of wire





Ex 3) Magnetic field around a Single Loop of Wire w/ current



[ Flash ]





A loop of wire with current
creates a little magnet



North Pole is either
above or below the loop









Finding N. and S. Pole
of a loop of wire


Step 1 - Current travels from (-) to (+)  terminal, DRAW the direction of the current on the wire



Step 2 - Palms away, thumb in direction of current



Step 3 - Curl fingers of left hand into loop

Why Left and not right??



Step 4 - Note where four fingers tips are pointing when they enter the INSIDE of the loop



Fingers tips - NORTH POLE of the magnetic field

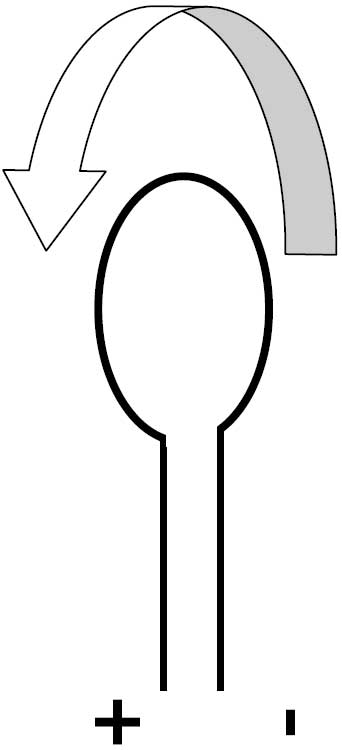

North Pole
 ABOVE or BELOW ??





Below


South Pole??
ABOVE or BELOW??





Above

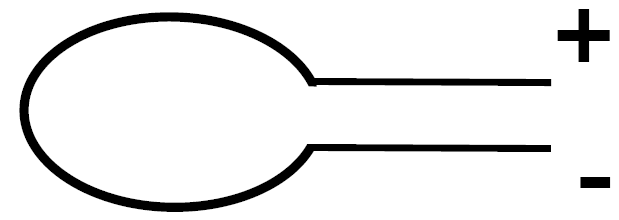

North Pole
 ABOVE or BELOW ??



Below

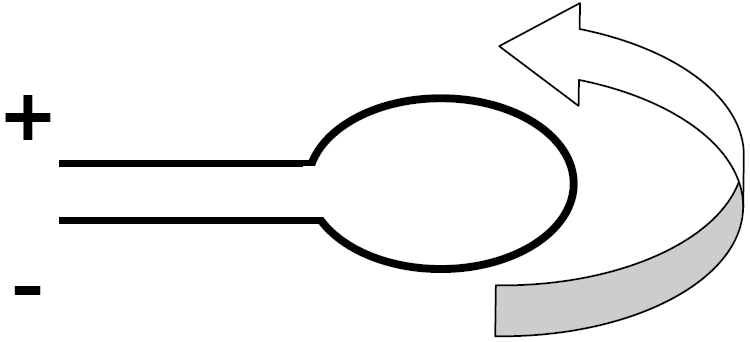

North Pole
 ABOVE or BELOW ??





Above



South Pole
 ABOVE or BELOW ???





Below









If (+) and (-) terminals are reversed
the current is reversed.



Magnetic Poles?



Poles are reversed











What's wrong with this picture?





Flux lines never touch



Using magnets to
repel crocodiles










Solenoid
