Try this at home!

| Onsite |





#6 - Slope of d vs t plot shows what motion?





(d) Displacement

(distance from start) meters




V = ∆d/∆t

= Velocity







Name the 2 motions

(d) Displacement
(distance from start) meters



1. Constant Positive Velocity

2. Constant Negative Velocity

(backwards)

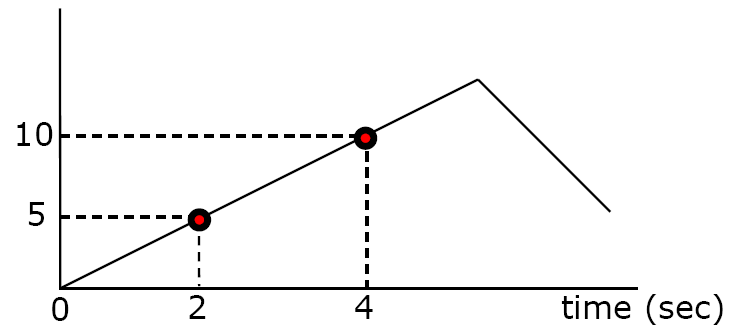

Calculating Velocity

  V = ∆d/∆t



 Calculating Velocity

  V = ∆d/∆t



= (10. m - 5.0 m)/(4.0 s - 2.0 s)



= +2.5 m/s

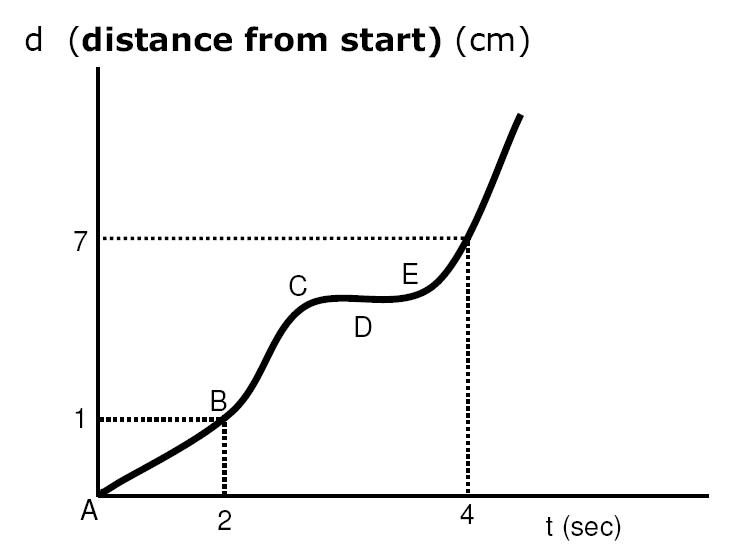

A to B?

Constant velocity







B to C?





Increasing Velocity,
then Decreasing Velocity





D?







Rest

 V = 0







D to E ?







Increasing Velocity



Ex) Describe the motion

d (cm)









Object at Rest





Motion Graphs
(d vs t)
