Euler's disk

What energy change occurs below?





II. Energy (Joules)





 - 2 kinds









Potential & Kinetic Energy



A) Potential Energy - stored energy that an object has due to its position or condition.



"At what position(s) or

condition(s) do these

 objects have the

most PE?"









1. Gravitational P.E.g

(PE = Potential Energy)







Two factors determine PE

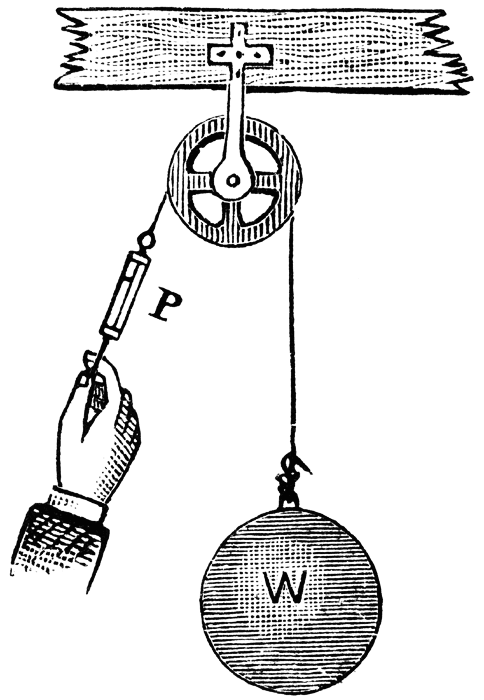

Fixed Pulley

Source: Elroy M. Avery School Physics (New York: Sheldon and Company, 1895) 141
Copyright: 2009, Florida Center for Instructional Technology. See license.

ETC Clipart







Height, weight







P.E.= (mg)h = (weight)h
Joules Kg (m/s2)m N m
    (Not in reference)



g on earth = 9.8 m/s2

mg = weight

(force it could exert)

h = height

(distance force could be exerted)







ΔP.E. = mgΔh = wΔh
    (Not in reference)





Ex 1) What P.E. is gained when a 100. kg object is raised 4.00 m straight up?

Ex 1) What P.E. is gained when a 100. kg object is raised 4.00 m straight up?

m = 100. kg

h = 4.00 m





ΔP.E. = mgΔh





= (100. kg)(9.81 m/s2)4.00 m



= 3920 J







Ex 2) What PE would be

 gained if an object were

 moved 4 m to the right?









ΔP.E. = 0







Ex 3) An object weighing 15. N is lifted from the ground to a height of .22 m.

Find object's change in PE



Ex 3) An object weighing 15. N is lifted from the ground to a height of 0.22 m. Find object's change in PE





ΔP.E. = mgΔh = wΔh
    (Not in reference)



w = 15. N

h = .22 m





ΔP.E. = wΔh



ΔP.E. = 15. N(.22m)



ΔP.E. = 3.3 Nm

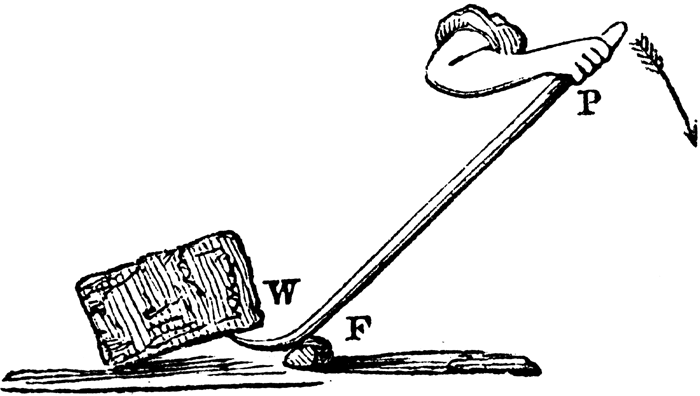

"Crow bars reduce the

force needed to move

a body



G. P. Quackenbos A.M. A Natural Philosophy: Embracing the Most Recent Discoveries in the Various Branches of Physics, and Exhibiting the Application of Scientific Principles in Every-day Life (New York: D. Appleton and Company, 1859) 95

Clipart ETC

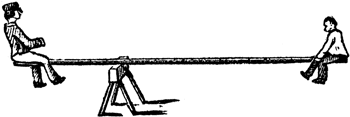

"... remember what

you learned on a

seesaw?

Clipart ETC







Elastic PE
