Dissolved gases in a liquid lower the freezing point temperature. When the gases leave, the liquids is able to freeze.







showmethephysics.com

Show Me The Physics
YouTube Channel





Fill in the Blank Notes

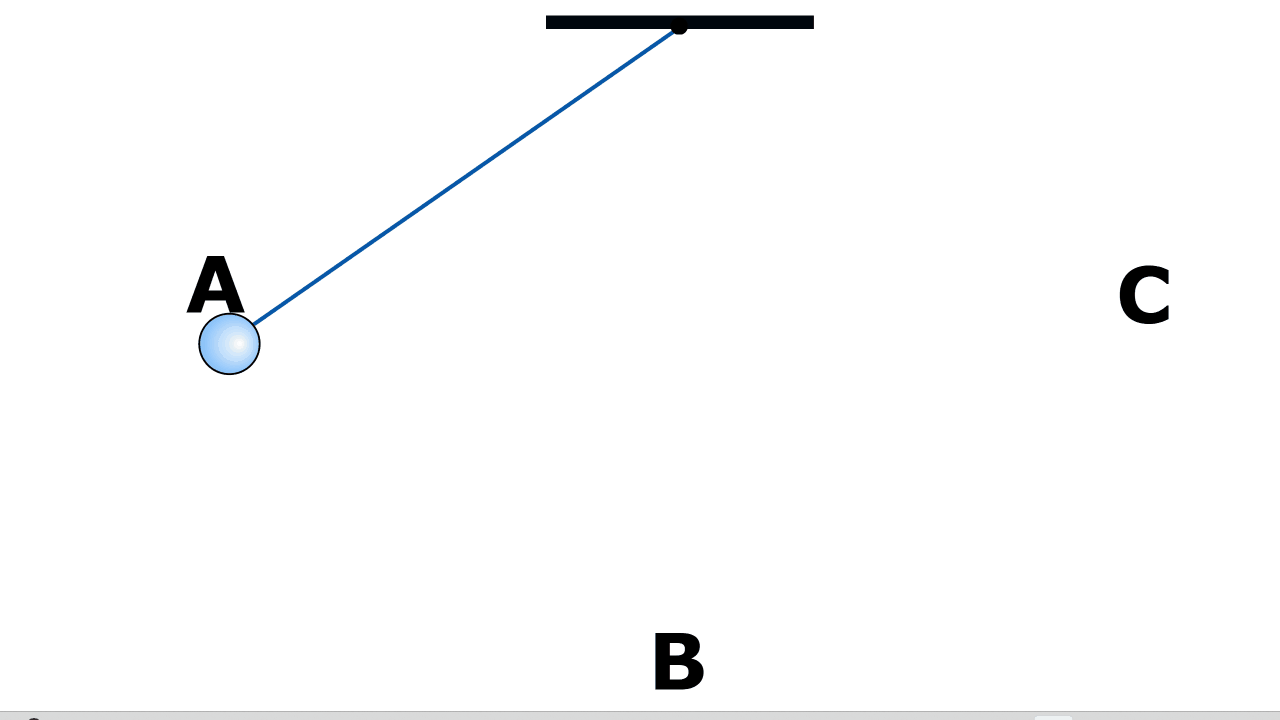

Ex 3)  Pendulum

Where is PE max?, KE Max?, PE = 0?,
KE =0? KE = PE?

| Flash |
 Show Me The Physics

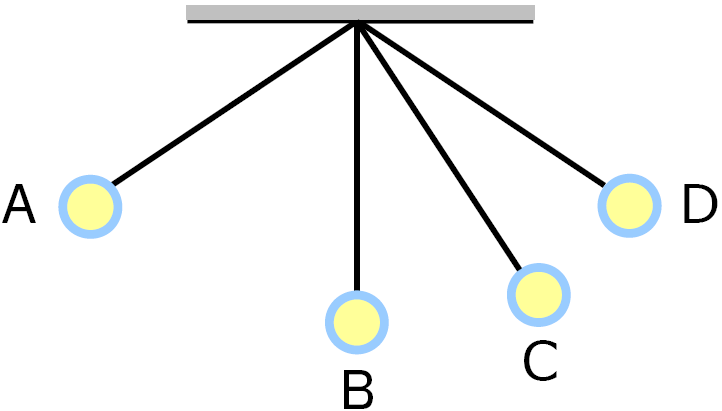

If PE at A = 10 J, KE = 0









  PE KE
A 10 J

0 J
B 0 J









10 J
D 10 J









0 J





If PE at C = 3 J, KE = ?





KE = 7 J







Ex) If the Wf as the pendulum moves from A to B is 1.5 J, what are the KE and PE of the pendulum at the bottom of the swing?











PE = 0 J



KE = 8.5 J

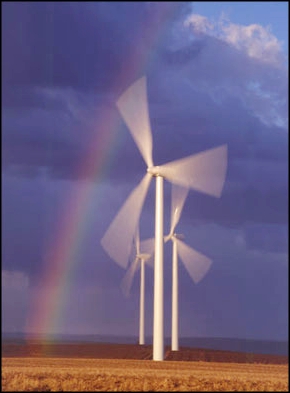

Wind turbines convert

one form of energy into

another. What is that

conversion?

Teachers - Check out this great clipart archive - Wpclipart









Kinetic energy to

electric energy.







All Pendulums






PE Max. at





Extremes





KE Max. at





Bottom





PE at Extremes

 =





KE at Bottom









KE @ Extreme

=



Zero



PE @ Bottom
always

=



Zero










Ex 4) 1.0 kg pendulum swings to a height of .20 m above its lowest point.

K.E. of pendulum at lowest point?






Ex 4) 1.0 kg pendulum swings to height of .20 m above lowest point.  KE of pendulum at lowest point?







PE @ A

=

KE @ B





PE = mgh

= (1.0 kg)(9.8 m/s2)(.20 m)





PE = 1.96 J





PE = KE @ B = 2.0 J

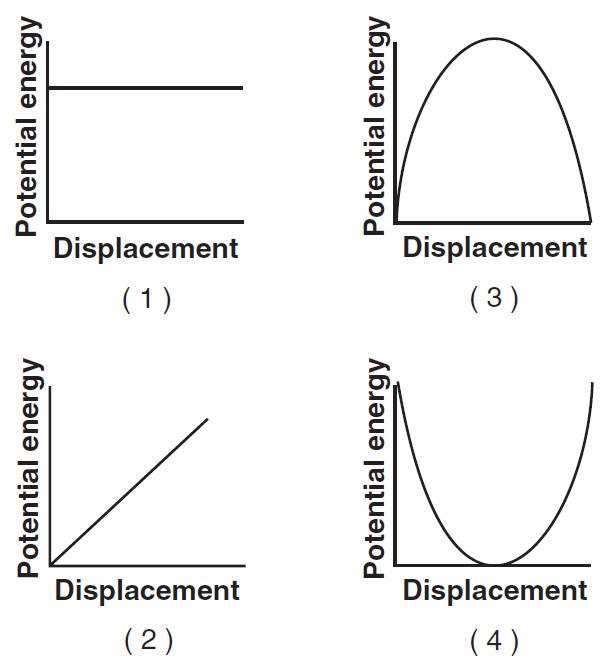

Ex) A pendulum is pulled to the side and released. Which plot of d vs PE is correct?













Answer

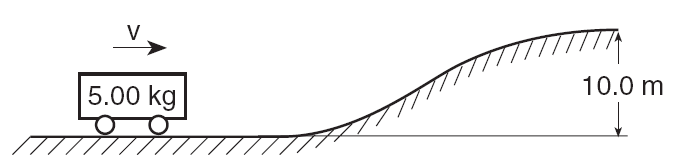

Ex 5) 5.00-kg cart at foot of a hill 10.0 m high. For cart to reach the top of the hill, what is minimum KE of cart in the position shown?

[neglect friction.]








Ex 5) 5.00-kg cart at foot of hill 10.0 m high. For cart to reach the top of the hill, what is minimum K.E. of the cart in the position shown? [neglect friction.]


m = 5.00 kg

h = 10.0 m

KE = ?



KE at bottom = PE at 10.0 m



KE = PE = mgh

 = 5.00 kg(9.8 m/s2)10.0 m





KE = 490. J




Author H. Christiaen, K.U.Leuven, Belgium









Finding the height of a pendulum
from a pendulum angle







Energy Problems



Enrichment



Pendulum Top View



[ Flash ]

Foucault's Pendulum - Proved the earth rotates

 School blocks YouTube? Use the file below.

Foucault_PendulumReal.wmv

Pendulum mounted on a rotating base

School blocks YouTube? Use the files below.

| Foucault_Pendulum.mpg | Foucault_Pendulum.wmv |
