Review - Like poles or Opposite Poles?

Dorling Kindersley Books







Like Poles







F) Magnetic Force on moving charges



A charge shot through
a magnetic field
experiences a magnetic force.









What is moving this beam of electrons?

Show Me The Physics
YouTube Channel







Television Tube
Physics 2000

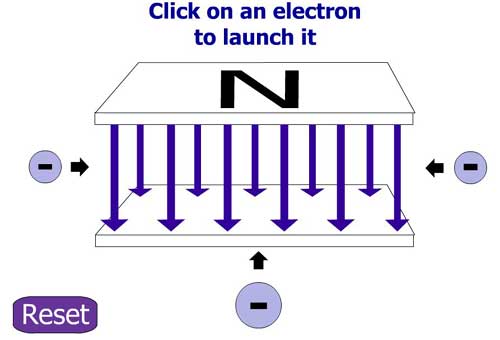

Electron in Magnetic Field - Flash

[ HTML5 ]
Show Me The Physics Website





School Block YouTube?
Use file below.

Download

Scientific Advisors: Dr. Saul Dushman;
Dr. Roman Smoluchowski;
Dr. David Harker  Prelinger Archives
Production Company: Wolff (Raphael G.)
Studios, Inc.
Audio/Visual: sound, color
Creative Commons license: Public Domain

Show Me The Physics
YouTube Channel









Moving charges create their own magnetic field





Force on a moving charge in a magnetic field is maximum when ...



a) .... the charge is Fast or Slow?







Fast






b) Big Charge or Small Charge?





Big






c) ... magnetic field strong or Weak?





Strong






1. Fmag = Bqv



B - flux density of magnetic field (strength)



q - charge (C)



v - velocity (m/s)










Magnetic force is maximum
when charge moves
perpendicular
to field


(Charge shot up)





Magnetic force = 0
when charge moves ...



... parallel to field












2. Direction of magnetic F on a charge moving through a magnetic field



Electron in Magnetic Field II - Flash

[ HTML5 ]
Show Me The Physics Online







Use 3rd Left Hand Rule





1) Draw in flux lines



2) Thumb - direction of moving charge



3) 4 fingers - direction of magnetic Field



4) Palm - direction of force on charge

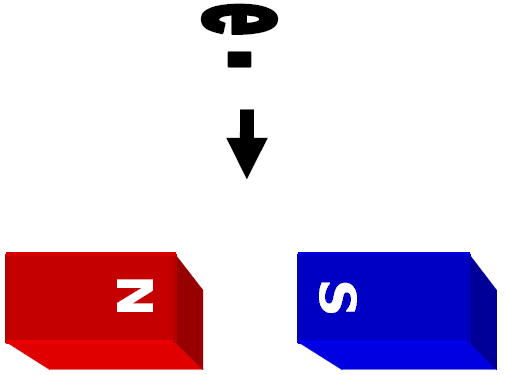

Answer: Into or Out of the page?







Out of Page















Into page









Figure 2:



Into or Out of page?













Into Page

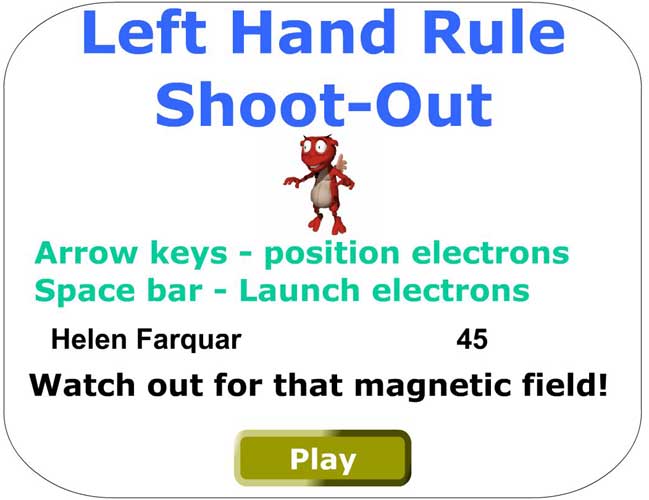

Left Hand Rule Game

[ HTML5 ]
Show Me The Physics Website











Helmholtz Coil



Mapping the direction of the Electromagnet





Finding the mass of an electron - Helmholtz Coil





Generator
Principle



Enrichment
