Name ___________________ # _____

Section _____

St. Mary's Physics

Date __________

Vector Review

1.







a) Carefully draw the horizontal and vertical components into the picture above

 Find: b) Vertical Component





c) Horizontal Component

2.

a) Find the perpendicular component





b) Parallel Component?

3. a) Which diagram would produce the greatest net force on the point?





b) Which would produce the least?













Vector Review

4.

What is the force applied by the hand?
5.



a) Carefully raw the horizontal and vertical components into the picture above

Find the magnitude of the:

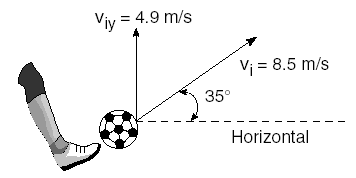

a) horizontal component of the ball's initial velocity





a) vertical component of the ball's initial velocity





6.

a) Which force has the largest vertical component?



b) largest horizontal component?

7.

What is the magnitude of the resultant of these 2 forces?











Vector Review

8.



a) Carefully raw the horizontal and vertical components into the picture above

 Find: b) Vertical Component (include units)





c) Horizontal Component




9.

a) Draw the resultant in the picture on the left

b) What is the magnitude of the resultant of these 2 forces?











10.

 Find: a) Vertical Component





b) Horizontal Component

















Vector Review

11.

a) Draw the resultant for the forces shown above

b) If 1 cm = 10 N, what is the magnitude of the resultant?





c) What is the magnitude of the equilibrant?

12.

a) Find F2







b) Find the acceleration of the block

a) Carefully draw the horizontal component to the velocity vector drawn above (Vix)

b) What is the magnitude of the horizontal component velocity vector?
